Light Gauge
Steel

A Core Engineering Solution for Modern Construction

Loranet's Light Gauge Steel solution is presented as a precision roll-forming approach for producing repeatable steel profiles used in modern construction, including wall framing, roof structures and other lightweight structural applications.

Build Stronger with Light Gauge Steel

Building a Stronger Tomorrow

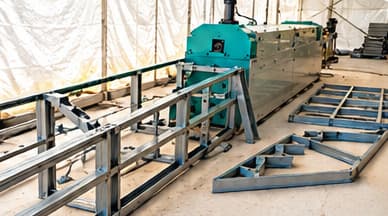

Light Gauge Steel Roll Forming Machine
PrecisionConsistent profile geometry
ProductivityContinuous roll-forming workflow
FlexibilityProfiles for different applications
EfficiencyStreamlined fabrication

Why Light Gauge Steel?

  • Lightweight

    Light-gauge steel framing can reduce structural weight while providing engineered framing performance.

  • Fast Assembly

    Factory-formed components support a streamlined construction and assembly workflow.

  • Consistent Quality

    Automated roll forming produces repeatable dimensions and profile geometry.

  • Lower Waste

    Controlled production and cut-to-length workflows can improve material utilisation.

  • Scalable Production

    A repeatable manufacturing process supports project-based and higher-volume production.

  • Modern Building Systems

    Suitable for modular, prefabricated and contemporary light-steel construction approaches.

Light Gauge Steel Production & Applications

A controlled production path can transform steel coil into repeatable finished profiles, helping fabricators standardise components and match production to project requirements.

  • 01

    Coil Feeding

    Steel coil enters the production line.

  • 02

    Roll Forming

    Progressive rollers shape the profile.

  • 03

    Punching

    Optional holes and service openings.

  • 04

    Cutting

    Profiles are cut to required lengths.

  • 05

    Finished Profile

    Ready for fabrication and assembly.

Typical Applications

  • Wall Framing

    Lightweight framing systems for internal and external wall construction.

  • Roof Trusses

    Engineered light-steel members for roof structures and truss assemblies.

  • Partitions

    Repeatable profiles for partition and wall systems.

  • Modular Building

    Factory-produced components supporting prefabricated construction.

  • Structural Components

    Profiles and assemblies for a variety of engineered building applications.

  • Custom Profiles

    Profile development can be tailored to project or system requirements.

From Machine to Building System

The value of the Light Gauge Steel line extends beyond the machine: it supports a repeatable manufacturing workflow in which profiles can be produced, organised and assembled into complete framing systems. This is relevant to contractors, fabricators, developers and modular-building specialists pursuing a more industrialised construction process.

  • Build Faster

    Move more framing work into a controlled production environment.

  • Build Smarter

    Standardise profiles and improve repeatability.

  • Build With Confidence

    Use a structured workflow from coil to component.

Light Gauge Steel Roll Forming Machine

High Precision | Efficient | Reliable

The Light Gauge Steel Roll Forming Machine is designed for the production of high-quality light gauge steel profiles used in modern construction, such as wall frames, roof trusses and structural components. With advanced roll forming technology, it delivers precise profiles, high output and consistent quality for your building system needs.

  • High Precision

    Accurate and consistent profile dimensions

  • High Productivity

    Continuous production with stable performance

  • Durable Construction

    Built with high-quality materials for long service life

  • Easy Operation

    User-friendly control system for simple operation

  • Cost Effective

    Reduces labour and material waste

Light Gauge Steel Roll Forming Machine

Product Overview

  • Produces light gauge steel profiles for building frames and trusses
  • Suitable for wall, roof and structural applications
  • Custom profile designs available
  • Integrated with punching and cutting system (optional)

Typical Output / Finished Profiles

  • C / U Channel
    C / U ChannelWalls & partitions
  • Wall Frame
    Wall FrameBuilding frames
  • Roof Truss
    Roof TrussRoof structures
  • Structural Components
    Structural ComponentsVarious applications

Technical Specifications

Light Gauge Steel Roll Forming Machine

Light Gauge Steel Roll Forming Machine
MaterialGI / GL / PPGI Steel Coil
Material Thickness0.4 – 1.2 mm
Web Width (Max)250 mm (customizable)
Forming Speed15 – 30 m/min (depends on profile & thickness)
Main Motor Power15 – 30 kW (depending on model)
Hydraulic Power7.5 – 15 kW (optional)
Control SystemPLC + Touch Screen
Roller MaterialHigh-grade Steel (HRC 58–62)
Machine FrameHeavy-duty Steel Structure
Total LengthApprox. 12 – 18 m (depending on configuration)
Total WeightApprox. 8 – 15 tons (depending on configuration)
Download Product Sheet

Why Choose Us?

Advanced Technology

Precision forming and stable performance

Superior Quality

Consistent and durable profiles

Professional Support

Installation, training and after-sales service

Global Application

Widely used in residential, commercial and industrial construction

  • Better Structures
  • Higher Quality
  • Longer Lasting
